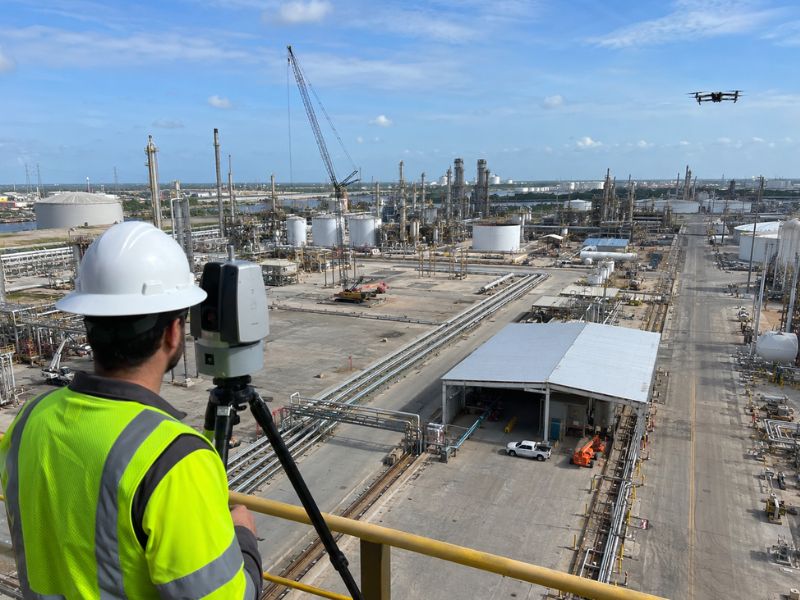

LiDAR mapping gives engineers a clear, accurate picture of a busy plant before any new building work starts. For a plant that’s planning to grow, that picture matters a lot. A big industrial site is full of pipe racks, storage areas, loading zones, and equipment that all need room to work together. Adding new buildings or equipment without knowing exactly what’s already there can lead to costly mistakes later. LiDAR fixes that problem by capturing the real layout of the site in detail, so the design team knows exactly what they’re building around.

Building a LiDAR Baseline of an Active Industrial Facility

Before anyone draws a new building on a plan, they need a true picture of what’s already there. LiDAR mapping captures the layout of buildings, pipe racks, storage areas, loading zones, equipment pads, and roads across the whole site.

This isn’t about studying the shape of the land or checking elevation numbers. It’s about making one clear, matching record of a working property that has grown and changed over the years. Older plants often have equipment added bit by bit, sometimes by different crews working from different old drawings. That means the paperwork on file rarely matches what’s actually standing on site.

That gap between old records and what’s really there is a big reason the baseline matters so much. A design team working from outdated drawings might plan a new building right where a support beam or storage pad now sits. The LiDAR baseline closes that gap. It becomes the starting point that every later choice gets checked against.

Mapping Busy Areas Without Stopping Plant Work

A busy plant doesn’t shut down just because a survey crew shows up. LiDAR data can be collected from the air, from a moving vehicle, or from the ground. Each way has its place, depending on how tight or how busy an area is.

The real challenge is timing. Crews need to plan their work around site rules, safety needs, and the plant’s daily schedule. That way, they spend as little time as possible near moving equipment or blocked-off areas. A well-planned schedule lets the crew collect data around the plant’s normal shifts instead of forcing production to stop.

Using Point Clouds to Line Up New and Existing Structures

Once the data is collected, it turns into a point cloud. This is a detailed 3D map made of millions of measured points. Engineers use that point cloud to check where new buildings, equipment, pipe paths, supports, and roads need to connect to what’s already built.

The main goal is catching problems before they become real problems. A pipe path planned too close to an old structure, or a new road that cuts through a support beam, shows up clearly in the point cloud long before crews ever break ground. This is different from finding single utility lines. It’s about making sure everything new actually fits into the space that’s already there.

Splitting Industrial LiDAR Mapping Into Phases

Not every industrial site gets mapped in one single visit. Large sites are often split into smaller zones based on building phases, work priorities, or which crew is working where at a given time.

Splitting the work this way makes sense for a plant that’s growing over months or years instead of all at once. The one thing that can’t slip is survey control. Every zone mapped at a different time still needs to line up inside the same project map. If that control isn’t steady, data from one phase won’t match data from another. The whole record becomes unreliable right when the design team needs it most.

Preparing LiDAR Files for Industrial Design Teams

Architects, engineers, builders, and contractors don’t all need the same files. Some need classified point clouds. Others need 3D surface models, aerial photos, CAD-ready shapes, or scan files that let them walk through the site on a screen.

Figuring out what each team actually needs has to happen before data collection starts, not after. The map system, accuracy needs, file types, coverage limits, and delivery dates should all be agreed on early. Skipping that step usually means collecting the data twice, which wastes time and money on a project that’s already complex enough.

Frequently Asked Questions

Can LiDAR map an industrial property while the facility remains operational?

Yes, in most cases. Crews can plan data collection around busy work zones, blocked-off areas, shift schedules, and the plant’s safety rules to keep disruption low.

What industrial features can LiDAR mapping document?

LiDAR can record buildings, tanks, pipe racks, equipment pads, paved areas, support beams, loading areas, and other above-ground features across the mapped site.

Can LiDAR data help identify conflicts with a proposed expansion?

Yes. Designers can compare the current point cloud with the planned model to check for problems before any building or installation starts.

Does an entire industrial campus need to be mapped at once?

No. Large sites can be mapped in phases, as long as each phase uses the same survey control and matching data standards.

What should be established before an industrial LiDAR survey begins?

The project team should agree on the mapping limits, the needed accuracy, the map system, the target features, the file types, safety rules, and the delivery schedule.
